Kotatsu Design & Development Inc.
Highlights
- Selectable 25 W or 50 W output
- 100×100 mm aluminum heat sink for thermal management
- Three replaceable 18650 cells with integrated BMS
- Charge‑in‑place with external charger
- 100 mm emitter, >100 lm/W efficiency
- >2500 lm (low) / >5000 lm (high)
- Bi‑directional 12 V port for auxiliary power
Technical Specs
- Board diameter: 108 mm
- Emitting diameter: 100 mm
- Power: 50 W (≈25 W at 12 V DC)
- Input voltage: DC 12–14 V
- Current: 3 A
- Color temps: 6500 K / 3000 K
- Luminous efficacy: >100 lm/W
Field Use
- Auxiliary 12 V power can drive LED strips or string lights at a campsite without turning the main lantern on.
- 360° rotating handle allows hanging from a tent peak, awning, or branch to act as an overhead light.

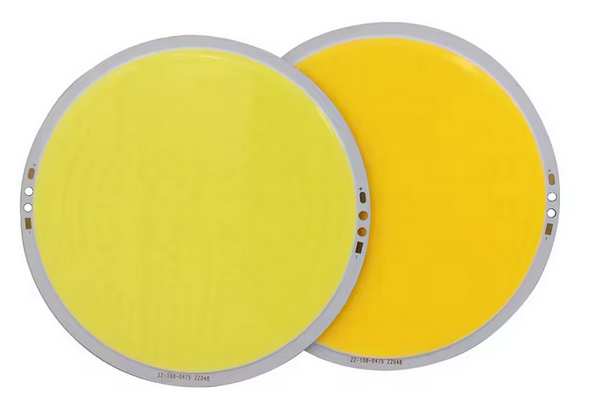

Emitter

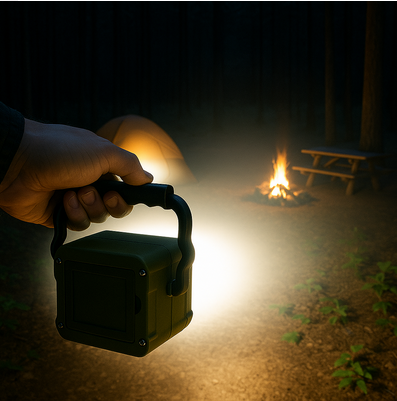

In Use

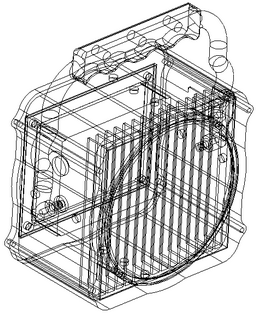

Engineering
Front
Rear
